Add TOTP-based 2FA to login

A password alone is one factor: something the user knows. TOTP-based two-factor authentication (2FA) adds a second — something the user has (an authenticator app that generates a 6-digit code every 30 seconds). The auth-mfa feature adds enrollment, a two-step login challenge, and recovery codes on top of auth-email-password, with almost no manual wiring.

Mount the feature

Add auth-mfa to APP_FEATURES next to auth-email-password. Apps built via runDevApp/runProdApp (the dev-server bootstrap) wire everything else automatically — the login handler’s status check, the POST /auth/mfa/verify route with its own rate limiter, and (if sessions is mounted) signing out every other session on enable/disable/regenerate.

import { createAuthMfaFeature } from "@cosmicdrift/kumiko-bundled-features/auth-mfa";

export const APP_FEATURES = [
  // ... other features
  createAuthMfaFeature({
    setupTokenSecret: config.mfaSetupSecret, // 32+ bytes, distinct from other token secrets
    challengeTokenSecret: config.mfaChallengeSecret, // 32+ bytes, distinct from setupTokenSecret
    issuer: "Your App", // shown in the authenticator app next to the account label
  }),
];

Building buildServer directly instead of through the dev-server bootstrap? See the Auth MFA recipe for the raw wiring contract (mfaStatusChecker, auth.mfaVerifyHandler, the session-revoke bind) that the bootstrap implements for you.

On the client, mount the login-challenge screen so a two-step login has somewhere to render:

import { emailPasswordClient } from "@cosmicdrift/kumiko-bundled-features/auth-email-password/web";
import { authMfaClient, MfaVerifyScreen } from "@cosmicdrift/kumiko-bundled-features/auth-mfa/web";

createKumikoApp({
  clientFeatures: [
    emailPasswordClient({ mfaVerifyScreen: MfaVerifyScreen }),
    authMfaClient(),
    // ... other client features
  ],
});

auth-mfa requires user and config; it’s auth-email-password that must already be mounted for the login flow to make sense.

Enable 2FA

Enrollment is a two-call, stateless flow — nothing is persisted until the user proves they scanned the QR code.

curl -sX POST https://app.example.com/api/write \
  -H "Authorization: Bearer <jwt>" -H "Content-Type: application/json" \
  -d '{ "type": "auth-mfa:write:enable-start", "payload": { "accountLabel": "[email protected]" } }'

{
  "isSuccess": true,
  "data": {
    "setupToken": "…",
    "otpauthUri": "otpauth://totp/Your%20App:[email protected]?secret=…&issuer=Your%20App",
    "recoveryCodes": ["ABCD-1234", "…8 total…"]
  }
}

Render otpauthUri as a QR code (the MfaEnableScreen component does this for you via qrcode) and show the 8 recoveryCodes once — they are never retrievable again. Confirm with a code from the now-scanned authenticator app:

curl -sX POST https://app.example.com/api/write \
  -H "Authorization: Bearer <jwt>" -H "Content-Type: application/json" \
  -d '{ "type": "auth-mfa:write:enable-confirm", "payload": { "setupToken": "…", "code": "123456" } }'

Only enable-confirm persists the user-mfa row — an abandoned enable-start (user never scans, never confirms) leaves nothing behind.

Log in with 2FA

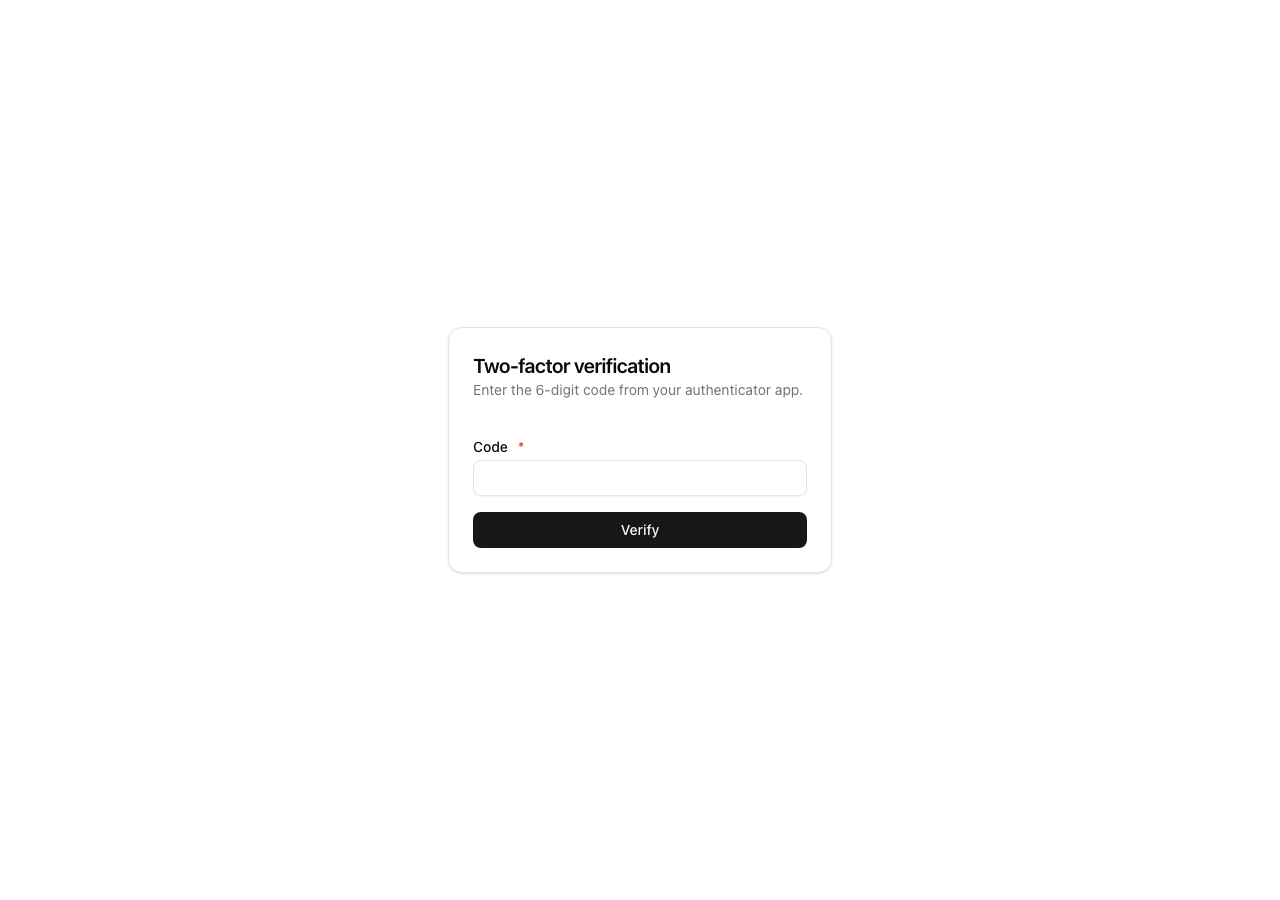

Two-factor login challenge — enter the code from your authenticator app

Once enrolled, POST /auth/login no longer returns a JWT directly for that user — it returns a challenge:

{ "isSuccess": true, "mfaRequired": true, "challengeToken": "…" }

Complete it with a TOTP code (or a recovery code) against the framework route POST /auth/mfa/verify — not a dispatcher handler, since no JWT exists yet:

curl -sX POST https://app.example.com/api/auth/mfa/verify \
  -H "Content-Type: application/json" \
  -d '{ "challengeToken": "…", "code": "123456" }'

{ "isSuccess": true, "token": "<jwt>" }

The challenge token is single-use and short-lived (10 minutes); a wrong code counts against a 5-attempt lockout independent of the login password-lockout counter.

Recovery codes

Each of the 8 codes generated at enrollment completes exactly one login challenge in place of a TOTP code, then it’s burned. Regenerate the set (invalidating all previous codes) via auth-mfa:write:regenerate-recovery — useful after a user suspects a code leaked, or has used most of them.

Disable 2FA

auth-mfa:write:disable requires a valid TOTP (or recovery) code — turning off 2FA is itself a security-sensitive action, not a plain toggle.

Enforce 2FA tenant-wide

By default, enrollment is optional — users choose for themselves. A tenant admin can require it via the auth-mfa:config:required config key ("optional" | "admins" | "all"). Setting "admins" or "all" blocks login for a matching, unenrolled user — there is no in-band “enroll during login” step yet, so roll this out with users already enrolled, or expect support requests from anyone who isn’t.

What to know

Session revoke, not session kill. Enabling, disabling, or regenerating recovery codes signs out every other live session (stolen-session defense) — never the session that made the change.
Secrets are encrypted at rest. The TOTP secret is envelope-encrypted via the same MasterKeyProvider as secrets/config — no separate crypto story, and it rotates through the same KEK-rotation job (auth-mfa:reencrypt).
GDPR coverage is a separate feature. Mount auth-mfa-user-data alongside user-data-rights to include 2FA enrollment status in data exports and hard-delete it on an erasure request — kept separate so plain auth-mfa consumers don’t pull in the GDPR pipeline as a hard dependency.
